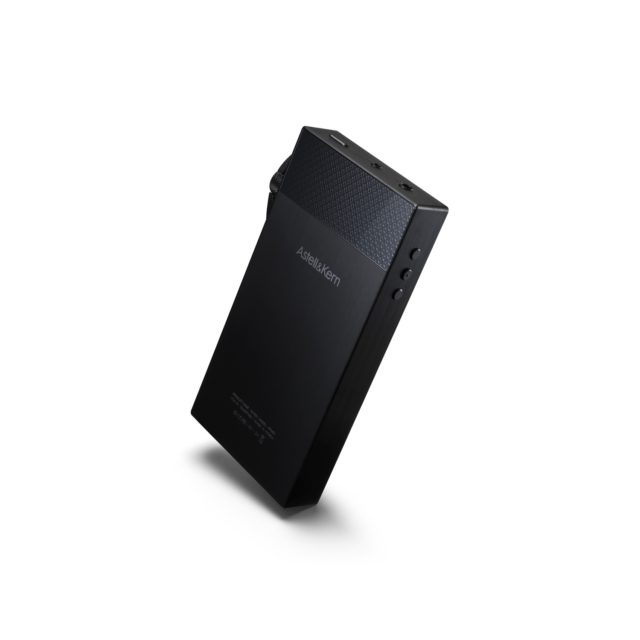

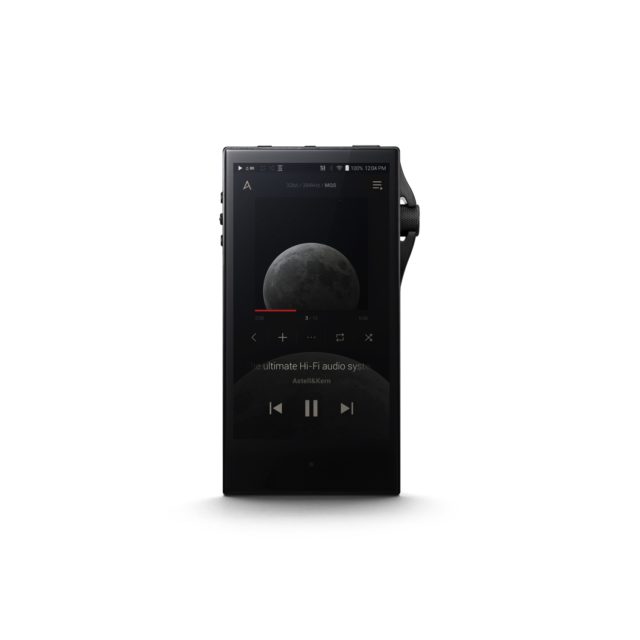

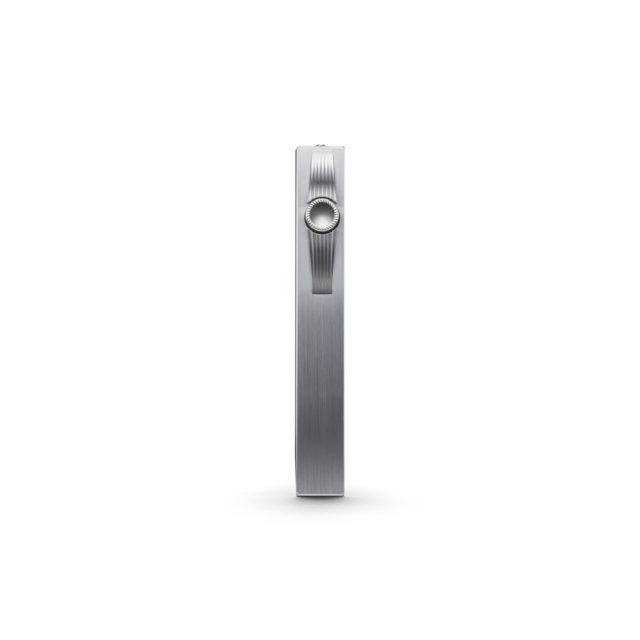

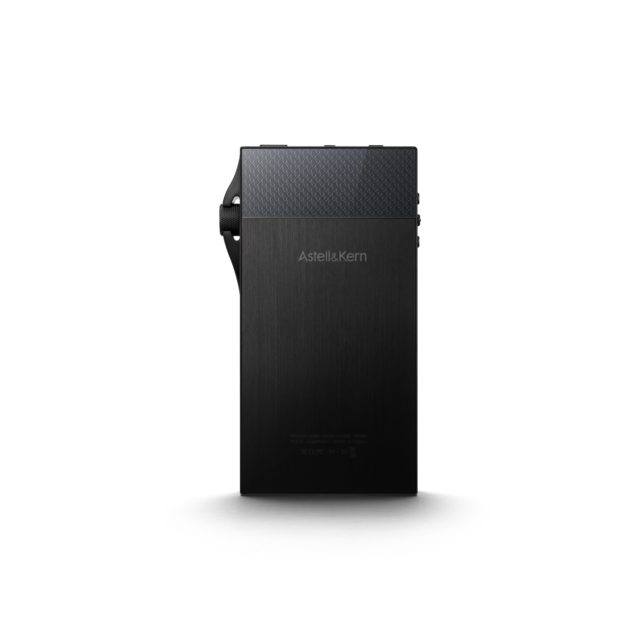

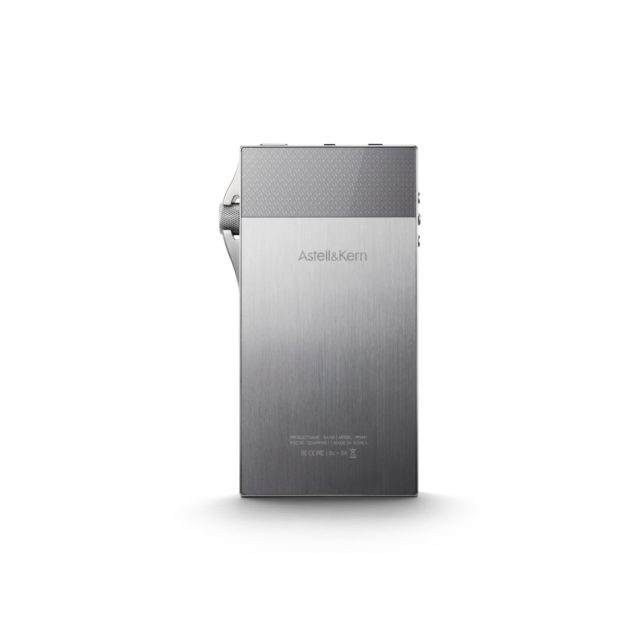

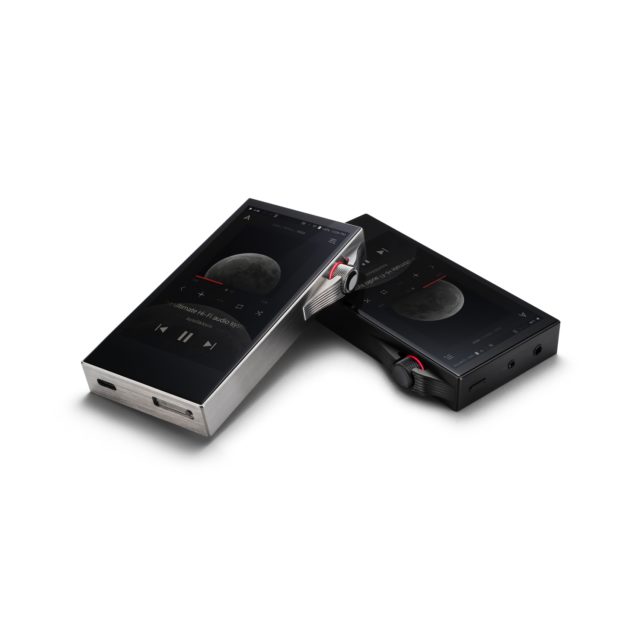

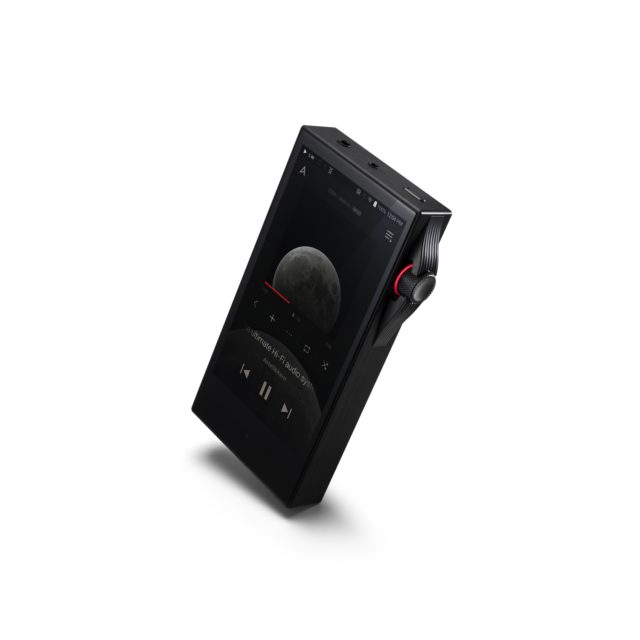

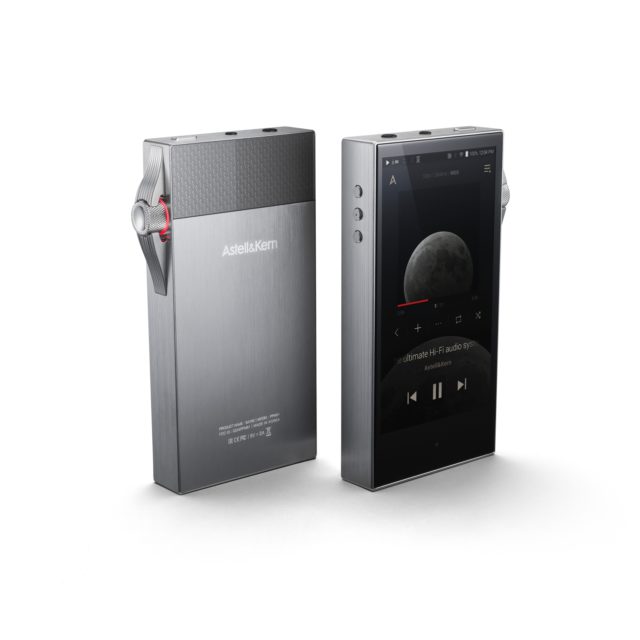

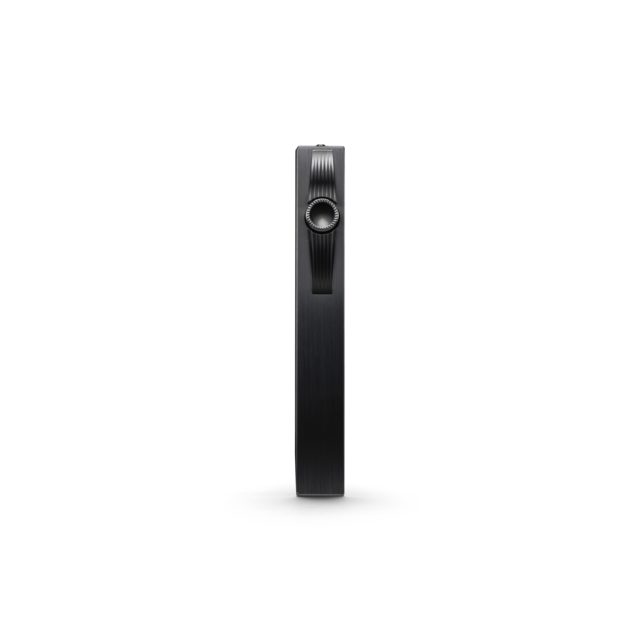

| Model | SA700 |
| Body Color | Onyx Black / Stainless Steel |
| Body Material | Stainless Steal |
| Display | 4.1inch (720 x 1,280) Touch display |
| Supported Audio Formats | WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF, MQA |
| MQA Playback | Services(Tidal Masters), Local files, External USB, MQA-CD(ripped) |
| Sample Rate | PCM : 8kHz ~ 384kHz (8/16/24/32bits per Sample) / DSD Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo |
| Output Level | Unbalanced 2.0Vrms / Balanced 4.0Vrms (Condition No Load) |
| CPU | Quad Core |
| DAC | AKM AK4492ECB x2 (Dual DAC) |
| Decoding | Support up to 32bit / 384kHz Bit-to-Bit Playback |
| Input | USB Type-C input (for PC & MAC) |
| Outputs | Unbalanced Out (3.5mm) / Balanced Out (2.5mm, only 4-pole supported) |
| Wi-Fi | 802.11 b/g/n (2.4GHz) |
| Bluetooth | V4.2 (A2DP, AVRCP, aptXTM HD) |
| Dimensions | 2.32 ”(59.1 mm) [W] x 4.56 ”(115.9 mm) [H] x 0.64 ”(16.5 mm) [D] |
| Weight | 10.68 oz (303 g) |
| Feature Enhancements | Firmware upgrades supported (OTA) |
| Frequency Response | ±0.24dB (Condition: 20Hz~20kHz) Unbalanced / ±0.24dB (Condition: 20Hz~20kHz) Balanced ±1.95dB (Condition: 20Hz~70kHz) Unbalanced / ±1.94dB (Condition: 20Hz~70kHz) Balanced |
| Signal to noise Ratio | 120dB @ 1kHz, Unbalanced / 123dB @ 1kHz, Balanced |
| Crosstalk | -134dB @ 1kHz, Unbalanced / -138dB @ 1kHz, Balanced |
| THD + N | 0.0006% @ 1kHz, Unbalanced / 0.0006% @ 1kHz, Balanced |
| IMD SMPTE | 0.0003% 800Hz 10kHz(4:1) Unbalanced / 0.0004% 800Hz 10kHz(4:1) Balanced |
| Output Impedance | Unbalanced Out 3.5mm (1.8ohm) / Balanced out 2.5mm (1.9ohm) |
